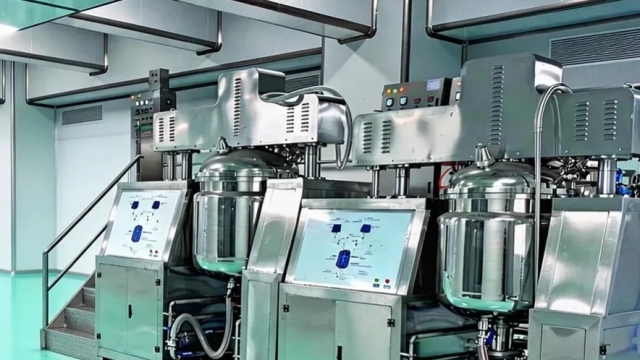

Stable creams and lotions depend on more than a strong motor and a polished vessel. The mixing system must create the required droplet size, remove trapped air, control temperature and repeat the same process from batch to batch. When evaluating a vacuum emulsifying mixer, cosmetic manufacturers should begin with the formula and production workflow rather than the equipment brochure.
Match shear to the formulation
Oil-in-water emulsions, water-in-oil products, gels and high-viscosity balms behave differently during processing. The emulsifier head must provide enough shear to disperse the phases without creating unnecessary heat or damaging sensitive ingredients. Rotor-stator geometry, speed range and circulation pattern influence how quickly the batch reaches a uniform texture.
A supplier should be able to discuss the intended viscosity range, batch size and ingredient sequence. A machine selected only by nominal vessel volume may mix a thin lotion well but struggle with a dense cream near the end of the process.
Vacuum is a process tool, not a decorative feature
Air can enter during powder addition, high-speed homogenizing and transfer. Entrained bubbles affect appearance, filling accuracy and oxidation stability. A properly sized vacuum system helps remove this air while the product is still mobile. Buyers should ask about achievable vacuum level, pump protection, foam management and how the system behaves when a formula expands under reduced pressure.
Heating and cooling determine cycle time
Many emulsions require separate heating of oil and water phases, followed by controlled cooling. Jacket design, heat-transfer area and utility temperature determine how long those stages take. An oversized heater cannot compensate for poor circulation near the vessel wall. The mixer, scraper and jacket must work together so that the batch changes temperature evenly.
During scale-up, cooling often becomes the bottleneck. A pilot batch may cool quickly because it has a high surface-area-to-volume ratio, while a production batch holds heat much longer. Reviewing cooling-water conditions before purchase prevents unrealistic capacity estimates.
Consider cleaning before choosing options
Product changeover can consume more time than mixing. Contact surfaces should be accessible, drainable and compatible with the planned cleaning agents. Dead zones around probes, valves and transfer lines can retain pigments, fragrances or active ingredients. If clean-in-place operation is required, spray coverage and return flow should be validated with the actual vessel layout.
Connect mixing with filling
The finished product must move to storage or an automatic liquid filling machine without excessive shear, contamination or air pickup. Outlet size, transfer pump type and hose length affect this step. High-viscosity creams may require positive-displacement transfer, while lower-viscosity products need careful flow control to avoid foaming.
Run a meaningful acceptance test
A useful factory acceptance test uses a representative product or a material with comparable viscosity. Record heating time, homogenizing time, vacuum stability, discharge behavior and cleaning access. Take samples from different vessel levels and compare viscosity and appearance. These observations provide stronger evidence than an unloaded speed test.
The right mixer is the one that supports repeatable product quality, realistic batch timing and a clean transition to downstream filling. A specification built around the complete process makes that outcome far more likely.
